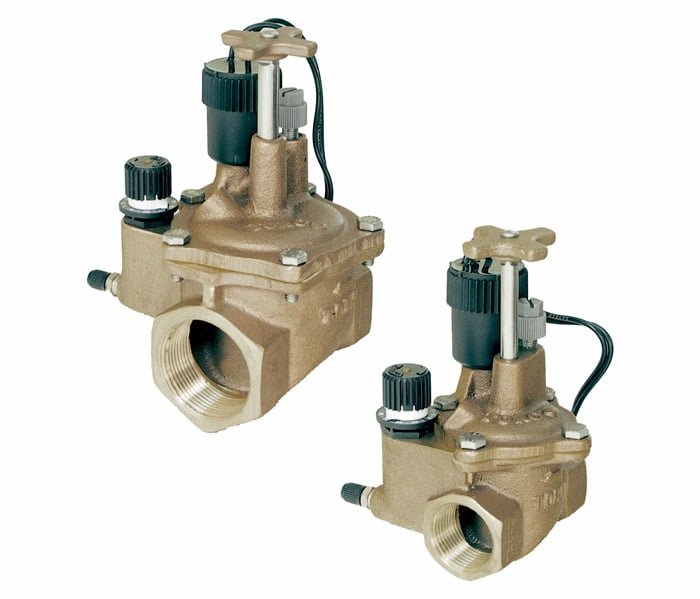

220G Brass Series Valves
Overview
The 220G Brass Series valves that provide extra durability in the most challenging environments on the course. With precise pressure regulation the optimum operating pressure and exact flow requirements are delivered to every sprinkler – ensuring maximum efficiency and uniformity.
Specifications
- Flow
1” (25 mm): 19 to 151 L/min; 1¼” (32 mm): 76 to 379L/min; 1½” (38 mm): 76 to 492L/min; 2″ (50 mm): 114 to 681 L/min - Operating Pressure
5.2 bar (220 psi) maximum pressure rating: Electric – 0.7 to 15.2 bar (10 to 220 psi) • Pressure Regulation: 0.34 to 6.89 bar (5 to 100 psi)
- Solenoid
Spike Guard™: 24 VAC (50/60 Hz) Standard; DC latching – momentary low voltage pulse - Inrush
60 Hz: 0.12 amps/li>
- Dimensions
1” (25 mm): 133 mm x 127 mm (H x W); 1¼” (32 mm): 165 mm x 152 mm (H x W); 1½” (38 mm): 165 mm x 152 mm (H x W); 2” (50 mm): 190 mm x 178 mm (H x W) - Holding
60 Hz: 0.1 amps
- Body Style
Globe with female threads - Burst Pressure Safety Rating
51.7 bar (750 psi)
- Minimum Pressure Differential
0.7 bar (10 psi) - Construction
Brass
