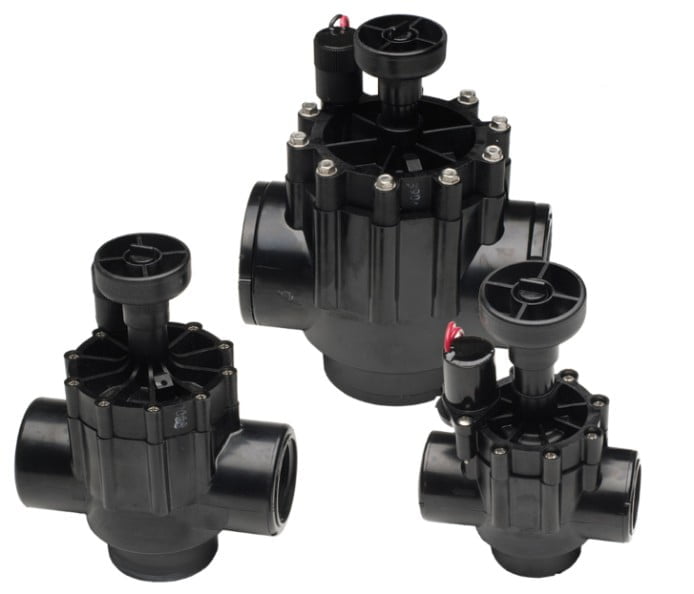

252 Series
Overview
This durable valve is designed to handle the needs of every commercial application, whether electric or hydraulic. The debris-resistant design is tested and proven to perform under the harshest conditions.
Specifications
- Flow
19 to 1,135 L/min - Operating Pressure
1.4 to 10.3 bar
- Inrush
0.30 amps - Dimensions
1″ (25.4 mm): 17.1 cm H x 11.4 cm W; 1½” (38.1 mm): 19.7 cm H x 15.2 cm W; 2″ (51.4 mm): 24.1 cm H x 17.8 cm W
- Size
1″ (25.4 mm), 1½” (38.1 mm), 2″ (25.4 mm) - Holding
0.20 amps
- Body Style
Angle, Inline/Globe
- Burst Pressure Safety Rating
51.7 bar
