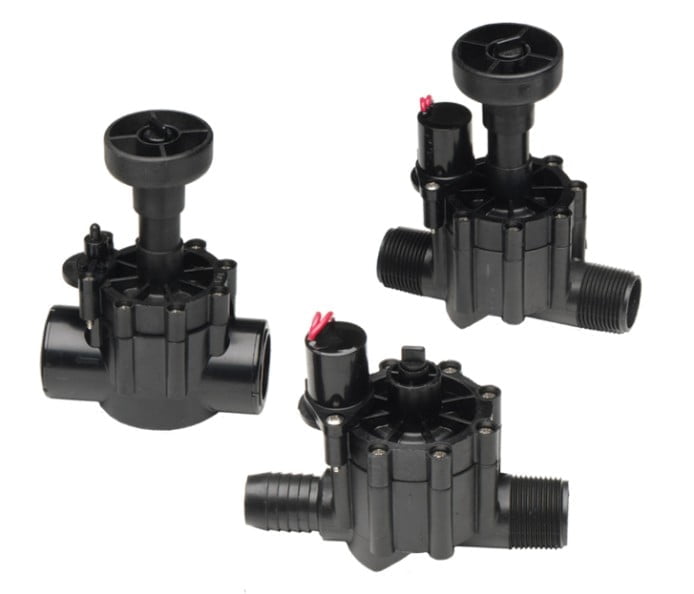

254/264 Series
Overview
These durable valves are designed for contractors who prefer male inlets and male or barbed outlets and need a valve that can withstand the pressures of large residential and light commercial applications.
Specifications
- Flow
0.9 to 1.1 L/min - Operating Pressure
0.7 to 10.3 bar
- Inrush
¾” (19 mm) – 0.25 amps; 1″ (25.4 mm) 0.30 amps - Dimensions
¾” (19 mm): 7.6 cm H x 10.2 cm W; 1″ (25.1 mm) 254: 15.2 cm H x 11.4 cm W; 1″ (25.1 mm) 264: 11.4 cm H x 11.4 cm W
- Size
¾” (19 mm), 1″ (25.4 mm) - Holding
¾” (19 mm) – 0.19 amps; 1″ (25.4 mm) 0.20 amps
- Body Style
Inline/Globe
- Burst Pressure Safety Rating
51.7 bar
