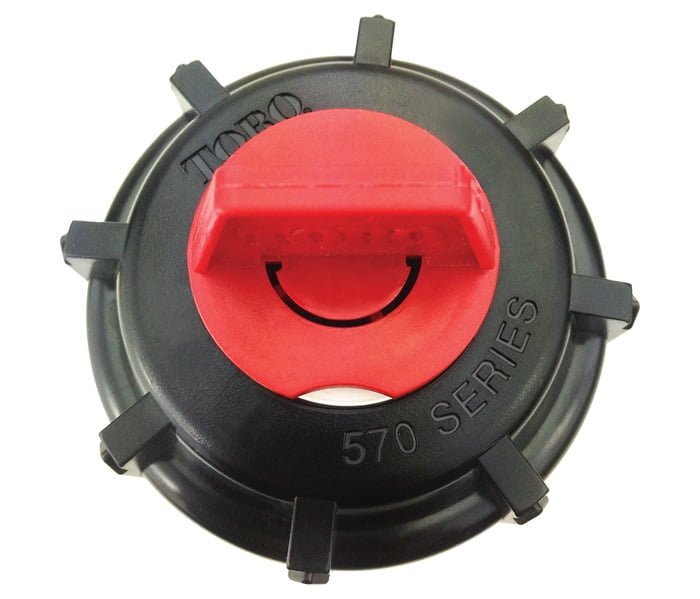

570Z Series
Overview
The 570Z is ideal for small to medium size landscape areas and intricate designs. The PR and PRX models are ideal for applications with high or varying operating pressure, including long lines and slopes. The X-Flow feature restricts water loss by 99% if damaged.
Specifications
- Radius
60 cm to 7.9 m - Flow
0.2 to 17 L/min
- Recommended Operating Pressure
1.4 to 3.5 bar (20 to 50 psi) - Inlet
1/2″ (12.7 mm) female threaded
- Pop-Up Height
51 mm, 76 mm, 102 mm, 152 mm, 305 mm - Body Diameter
35 mm except 12P – 41 mm & 12P SI – 45 mm
- Cap Diameter
51 mm
- Body Style
Side inlet option
