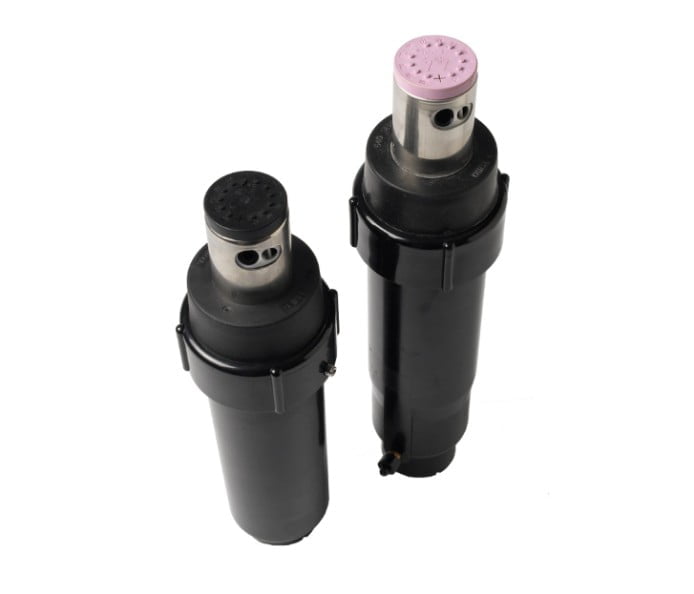

640 Series Rotors
Overview
Considered the most durable, heavy-duty commercial sprinkler available, the 640 Series is the traditional, proven veteran for athletic fields and other large commercial applications. It is equipped with a standard rubber cover and offers a choice from five nozzles and twelve arcs. A variety of models are available including Valve-In-Head, Check-O-Matic and recycled.
Specifications
- Radius
14.3 to 20.4 metres - Flow
22.7 to 94.6 L/min
- Arc
Full Circle; Part circle fixed - Recommended Operating Pressure
2.8 to 6.2 bar
- Inlet
1″ - Pop-Up Height
60.3 mm
- Body Height
23 cm (valve in head: 26.7 cm) - Cap Diameter
82.6 mm
- Body Diameter
64 mm - Exposed Diameter
44 mm
