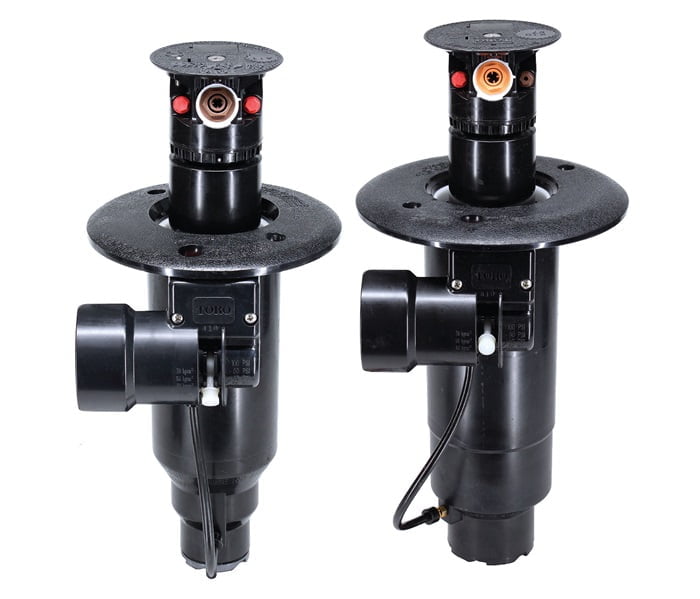

FLEX800™ 34/54 Series Golf Rotors
Overview
The New FLEX800™ 34/54 Series with dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the consistency of the constant velocity full circle drive ensures even water application across the coverage area every time you water.
Features
Available in 1″ (2.5 cm) inlet (DT34) and 1.5″ (3.8 cm) inlet (DT54)
ACME, NPT and BSP threads
Conversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro systemConstant Velocity Full-circle Drive
Provides consistant rotation speeds from sprinkler to sprinklerCheck Valve Standard
Prevents low head drainage, puddling and soil erosionEffluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Specifications
- Radius
15.8 to 30.2 metres - Flow
49 to 234 L/min
- Precipitation Rate
FLX34: Min = 8 mm/h; Max = 14 mm/h; FLX54: Min = 8 mm/h; Max = 15 mm/h - Trajectory
25° & 15°
- Arc
Full Circle - Recommended Operating Pressure
4.5 to 6.9 bar
- Minimum Operating Pressure
2.8 bar - Inrush
60 Hz, 0.30 Amps
- Holding
60 Hz, 0.20 Amps - Inlet
1″ and 1½” NPT, BSP, ACME
- Pop-Up Height
82.6 mm - Body Height
FLX34: 25.4 cm; FLX54: 28.9 cm
- Body Diameter
FLX34: 16.5 cm; FLX54: 19.1 cm - Weight
FLX34: 1.4 kg; FLX54: 1.7 kg
