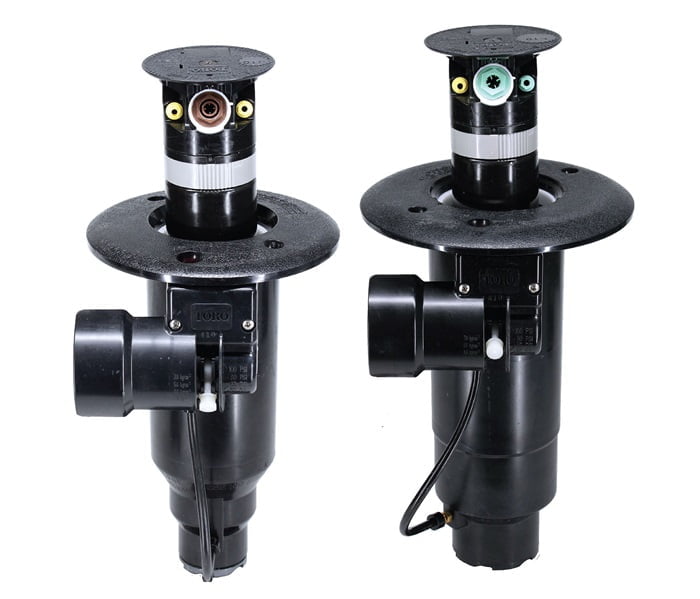

FLEX800™ 35/55 Series Golf Rotors
Overview
The New FLEX800™ 35/55 Series features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.
Features
Available in 1″ (2.5 cm) inlet (DT35) and 1.5″ (3.8 cm) inlet (DT55)
ACME, NPT and BSP threadsConversion Assemblies available to economically upgrade your existing Toro system
Conversion Assemblies available to economically upgrade your existing Toro systemArc adjustment – 40° to 330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.Check Valve Standard
Prevents low head drainage, puddling and soil erosion
Effluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.
Specifications
- Radius
13 to 28 metres - Flow
31 to 232 L/min
- Precipitation Rate
FLX35: Min = 10 mm/h; Max = 11 mm/h; FLX55: Min = 12 mm/h; Max = 15 mm/h - Trajectory
25° & 15°
- Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One – 40° to 330° and 360° - Recommended Operating Pressure
4.5 to 6.9 bar
- Minimum Operating Pressure
2.8 bar - Inrush
60 Hz, 0.30 Amps
- Holding
60 Hz, 0.20 Amps - Inlet
1″ and 1½” NPT, BSP, ACME
- Pop-Up Height
82.6 mm - Body Height
FLX35: 25.4 cm; FLX55: 29 cm
- Body Diameter
FLX35: 16.5 cm; FLX55: 19 cm - Weight
FLX35: 1.4 kg; FLX55: 1.7 kg
