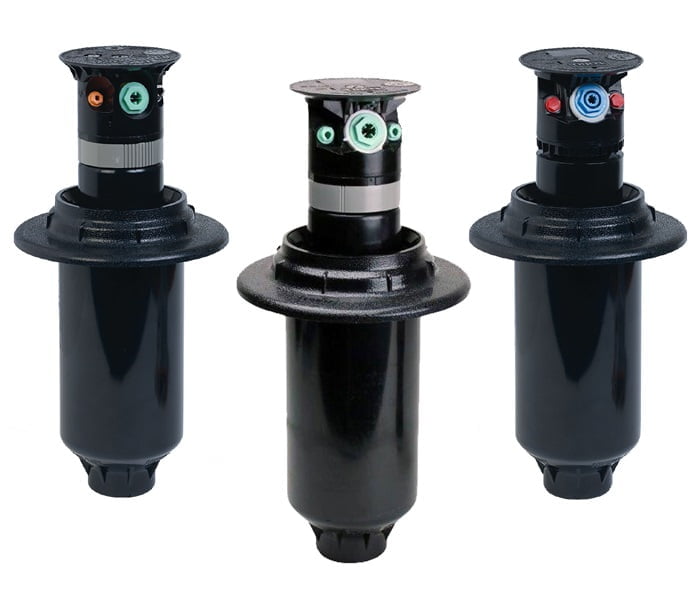

FLEX800™ B Series Golf Rotors
Overview
The FLEX800™ B Series golf sprinkler family brings you all the great features and performance of the FLEX800 35-6, 34 and 35 Series sprinklers in a more economical body package specifically designed for block systems. With its rugged golf body design, small exposed surface diameter, flanged body for stability and check valve these sprinklers are perfect for every golf application.
Features
Trajectory Adjustment
835B with tru-jectory adjustment from 7°-30° and DT models with dual settings of 25° or 15° for radius reduction and obstacle avoidanceThe industry’s largest selection of precision nozzles from 25′ to 90′ (7.6 m to 27.4 m) radius applications
Allows you the flexibility to use one sprinkler to cover a large variety of radius and flow requirementsAdjustable part circle and full circle performance in one
One sprinkler for every location on the course-these unique sprinklers can be a full circleSmall exposed diameter
Minimises the appearance of the sprinkler to maximise the beauty of the landscapeFlanged cap design
Flanged cap installs below grade to stabilise the body position and maintain optimum nozzle performanceCheck Valve Standard
Prevents low head drainage, puddling and soil erosionEffluent Water Models Available
Models are available with lavender marking to identify the use of non-potable water.Back Nozzle Capable
Allows watering directly behind a part circle sprinkler
Specifications
- Radius
12.8 to 29 metres - Flow
26.9 to 213 L/min
- Precipitation Rate
835B: 8.6 to 14.2 mm/h; DT35B: 9.4 to 17 mm/h; DT34B: 8.4 to 15 mm/h - Trajectory
7° to 30°/25° & 15°
- Arc
Use “Arc” values: Full Circle; Part-circle Adjustable; Part/Full circle in One – 40° to 330° and 360° - Recommended Operating Pressure
3.4 to 6.9 bar
- Inlet
1″ (25.4 mm) NPT, BSP, ACME - Pop-Up Height
82.6 mm
- Body Height
21.6 cm - Body Diameter
15.2 cm
- Weight
0.9 kg
