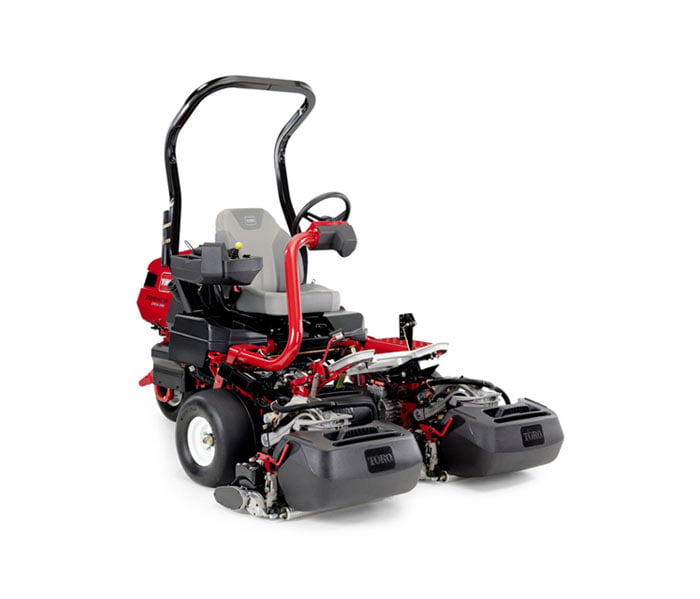

Greensmaster® eTriFlex™ Series
Overview
The new Greensmaster® eTriFlex models carry no hydraulic fluid and utilize all-electric components for traction, steering, lift and cutting. These EnergySmart® models are operationally friendly with noticeable noise reductions, operational cost savings, and other meaningful improvements to complement the ever-important enhancements in cutting performance. Combining the innovative, Double A-Arm Suspension System with industry-leading Flex technology, the cutting units float freely over any terrain. The new Radius Dependent Speed (RDS™) System, in combination with the Lift-In-Turn cutting unit leveling feature virtually eliminates the effect known as “Triplex-Ring”. This substantially improves both the aesthetics and playability of the green. And superior cutting performance is only the beginning. The patented Lift-Gate Footrest, Tool-Free QuickChange™ cutting units, Automatic “Slow-in-Turn” during Transport and Auto-Brake on Operator Dismount are just a few of the many new features that provide added versatility, simplified service, and ultimately, more productivity.
Configuration Options:
- Greensmaster 3360 All-Electric Engine Generator
- Greensmaster 3370 All-Electric Battery Powered
Features
Amazingly Quiet Operation
The 3370 & 3360 eTriFlex models run at an amazingly quiet noise level 66.5 & 73 dBA (respectively) which minimizes early morning disturbances and results in 50% lower perceived bystander noise level.Radius Dependent Speed Systems (RDS™)
The RDS™ Systems control both the speed of the reels as well as the wheels to provide a consistent even clip-rate across the cutting heads and minimize scuffing from the wheels during clean-up passes. The RDS system virtually eliminates “Triplex Ring” and ensures high quality after cut appearance.No Onboard Hydraulic Fluid
With traction, lift, steering, and reel drive all being electric, there are no hydraulic systems on the eTriFlex Series of mowers. Sleep easy knowing that leaks or even the risk of hydraulic leaks are a thing of the past.Slow-in-Turn
When mowing or in transport mode, the eTriFlex Series mowers sense the steering rate of change and automatically slows the speed of the machine when aggressive turns are made. This results in reduced turf damage from skidding wheels, and provides the operator with ample control of the mower.Fuel Savings
The eTriFlex 3360 (Engine/Generator Model) provides up to 20% fuel savings over comparable Triplex mowers, and the 3370 (All-Battery Model) eliminates the need for a liquid fuel source altogether.Speed Dependent Reel Drop and Even Cut Line
When the operator is raising or lowering the cutting units while in motion, the onboard computer system calculates the exact timing to raise/lower the rear cutting unit in order to match the cut line of the front two cutting units. This allows for consistent and precise cutting maneuvers from green to green.Auto-Brake on Operator Dismount
If the operator leaves the seat when the mower is running and fails to engage the parking brake, the system will sense it and automatically engage the parking brake to ensure the operator’s safety and avoid the machine rolling away.Familiar Operation & Controls
The operational controls for the eTriFlex series of mowers are based on the same platform as existing Greensmaster TriFlex models. This allows operators that are familiar with the TriFlex models to immediately begin running the eTriFlex models with minimal training or instruction. Just mow!Superior Traction
Both front wheels are powered by electric traction motors with a gear reduction. The posi-traction system improves traction over a hydraulic or mechanical differential to ensure positive two-wheel drive while minimizing tire scrubbing. *An optional 3WD Kit is available for more severe hill climbing capabilities.DPA Cutting Units
The most advanced cutting unit in the industry:Only two adjustments
Superior height-of-cut retentionNo daily greasing (stainless steel bearings)
Consistent cutting edge regardless of reel wear (patented)
Smallest bedknife increment adjustments .007inch (.178mm)
Double A-Arm Suspension
The suspension system maintains full floatation range to prevent gouging or scalping when going over undulations.Proven Flex Suspension (Patented)
Superior contour following capability utilizes an integrated “Flex” linkage system to allow cutting units to pivot around the center of the front roller to master undulations and prevent side-to-side scrubbing of the putting surface.EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.All-Electric Reel Drive
In addition to eliminating hydraulic leaks, each reel motor has a nominal 1.5 horsepower (1.1 kW). This translates into the power you need when you need it for unparalleled performance in your most challenging cutting applications.Stored Energy
Eliminates clip marks at the startup of a mowing pass and provides braking power to stop reels from spinning when cutting units are disengaged for safer operation.Lift-In-Turn Cutting Units
The suspension system is designed to provide a slight lift to the inside of the cutting units during turns to deliver a consistently level cut and to reduce “triplex ring” for improved playability and turf health.Exclusive Lift-Gate Footrest
Easy access to the center cutting unit facilitates routine maintenance and repairs, simplifies adjustments, and eliminates the need to put the traction unit on a lift for cutting unit service saving you time, money, and frustration.Superior Clippings Capture
Redesigned clipping capture system maintains a consistent gap between the basket and reel to retain nearly all grass clippings for a cleaner and healthier cut. In addition, a discharge shield forces clippings inside of basket and minimizes “blow-by”.Tool-Free, Quick-Change Cutting Units
A single operator can go from cutting Greens at 0.125″ (3.2 mm) to cutting a Fairway at ¾” (19 mm) in just minutes. The tool-free, quick-change cutting units make it as easy as 1-2-3.Balloon Style Tires
Tires have been redesigned to deliver uniform loading across the entire cross-section (load footprint area) to eliminate side wall loading that can create visible tire tracks.
Specifications
- EngineEngine: Kawasaki 14.5 HP (10.8 kW) Petrol, air-cooled, twin cylinder. Generator: 48V 5400W air cooled brushless permanent magnet motor (3360). Or Eight, Lithium-Ion Samsung® SDI batteries (3370)
- Fuel Capacity4.9 gallons (18.5 liters) Petrol (3360) or 10.77kWh; 48V nominal (3370)
- Mowing Speed0-5 mph (0-8 km/h)
- Transport Speed0-10 mph (0-16 km/h)
- Cutting Width
59″ (150 cm) - Blade Type8-Blade, 11-Blade, or 14-Blade, High carbon steel blades
- Height of CutBench HOC range is .062-.297″ (1.6-7.5 mm). With high HOC kit, range is .297-1.0″ (7.5-25.4 mm)
- Reel Diameter
5″ (12.7 cm) EdgeSeries™ Reels
- Reel Speed
Adjustable up to 2050 RPM - Steering Controls
48V electric steering motor with torque feedback device
- Tires
19×10.5×8, 4-ply rating pneumatic tubeless balloon tires
