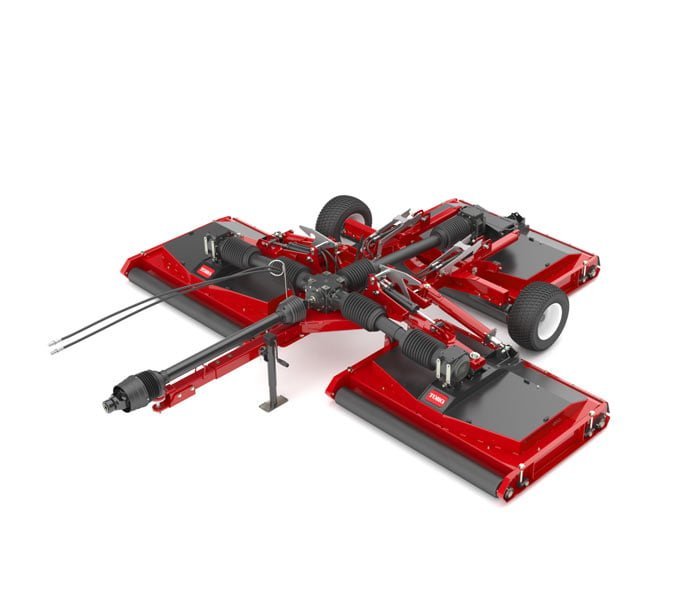

Groundmaster1200
Overview
The Groundsmaster 1200 delivers an unparalleled combination of productivity, durability and superior cut. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks.
Features
Cutting Deck Protection
The Toro bi-directional impact absorption system was designed for an impact of 5 mph. The spring-loaded cylinder allows the deck to rotate upon impact. This rotating action absorbs the peak force experienced when an operator strikes an object, protecting the main deck and frame components so you have less down time and more productivity.Robust Gearboxes
The deck gearboxes include an overrunning clutch that isolates the force from accidental blade impacts to keep the mower and tractor safe.Simple Height of Cut Adjustment
The Groundsmaster 1200 is not only a highly productive mower, it’s also very versatile. Each deck features four mowing height adjustment points making it simple and quick to deliver the exact mowing height for superior conditions.Durable Spindles
Ductile cast iron spindle housing is large in diameter [9 in. (229 mm) at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.Dual Rollers
The two full width rollers on the front and rear of each deck help deliver an exceptional quality of cut. The front roller help reduce scalping in undulated terrain while the rear roller delivers the exceptional turf striping. Each roller includes heavy duty bearings featuring easy access grease points.Maximum Productivity
The Groundsmaster 1200 features a deck lift system allowing for the decks to be lifted from the turf while the PTO is engaged to quickly turn around without scuffing or transport over cart paths. This system helps keep the operator running at peak productivity.Quick Transport
The Groundsmaster 1200 wing decks fold up near vertical for a narrow 86″ (218.4cm) transport width making it easy to get from site to site. Additionally, the transport wheels feature a torsion axle delivering a remarkably smooth ride making transport quick and comfortable.
Specifications
- Mowing Speed
Mows up to 8.73 acres/h (3.53 hectares/h) at 6 mph (9.7 km/h), assumes no overlap or stops - Cutting Width
Overall: 12 feet (365 cm), Individual deck: 54″ (137 cm), Overlap: 9″ (23 cm)
- Blade Tip Speed
15,000 ± 300 ft/min at 540 PTO RPM - Blade Type
9 blades, 19″ (48.3 cm) long, 2.5″ (6.4 cm) wide, 0.25″ (6.4 mm) thick
- Deck Design
10-gauge high strength steel constructed deck with 7-gauge bolt-in reinforcements. 7-gauge welded steel side skids with 5″ diameter steel rollers. - Deck Drive
PTO drive shaft drives 4-way gearbox, secondary driveshafts drive individual deck gearboxes, spindles belt driven with spring tensioner pulley.
- Height
Transport Height: 75.75″ - Height of Cut
0.5″ to 4.0″ (1.3 cm to 10.2 cm) infinitely variable
- Length
Transport Length: 145.5″ (Hitch fully extended) - Power Supply
Minimum 35 HP (26kW) at the PTO, 540 RPM
- Spindle Bearings
1.25″ (3.17 cm) diameter spindle shafts, 9″ (22.9 cm) diameter conical ductile iron housing and two greaseable tapered roller bearings. Driven counter clockwise when viewed from the top. - Tires
20 X 10 – 10 6 ply K500 turf tread
- Weight
Total weight: 2984 lbs. (1354 kg), Tongue Weight in Transport: 691 lbs. (313 kg) - Width
Width (decks down): 149.8″ Transport Width: 86″ (at 1/2″ HOC)
