Groundsmaster® 3500 Series
Overview

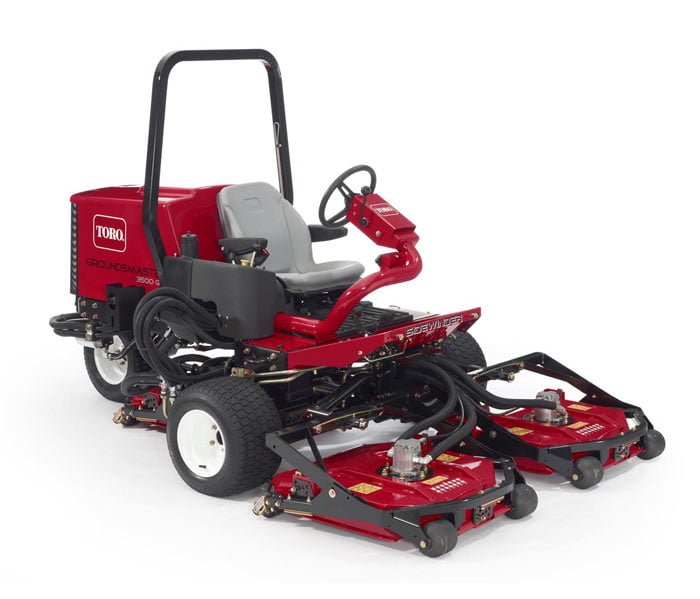

The Groundsmaster® 3500 Series is a revolutionary triplex rotary mower designed for superior performance trimming. The free-floating Contour™ Plus cutting decks allow mowing of undulating terrain without scalping. The powerful engine and exclusive traction drive system gets the mowing job done quickly.
Configuration Options:
- Groundsmaster 3500-D Diesel Powered with Sidewinder
- Groundsmaster 3500-G Petrol Powered with Sidewinder
- Groundsmaster 3505-D Diesel Powered with fixed Contour Decks
Features
Quality of Cut
The Contour™ Plus cutting technology takes quality of cut to a whole new level. Air inlet pockets keep the grass standing tall for the cleanest possible cut, while an acceleration baffle speeds clipping circulation and assures maximum power. In addition, a unique directional vane and modified discharge opening deliver even clipping dispersion. An optional mulching kit is also available.Operator Comfort
Deluxe seat adjusts to let you customize your work environment and reduce fatigue. Plenty of space at the operators station paired with easy-to-read controls increases comfort. Plus the steering wheel tilts for steering preference.Scalp-Free Mowing
The ground-following design of each Contour™ Plus free-floating deck permits mowing the most challenging berms without scalping. Two front rollers and a rear roller allow the deck to smoothly pass over turf.
Specifications
- Fuel Capacity
11 gallons (41.6L) - Cutting Width
72″ with 3 fixed Contour Plus Decks
- Engine Horsepower
24.8 hp Diesel Engine - Engine Displacement
1123cc
- Ground Speed
Mowing Speed: 0-6 mph (0-10 km/h) Transport Speed: 0-9 mph (0-14 km/h) - Height of Cut
75″-4″ in .25″ increments
- Steering Controls
Hydraulic power steering - Tires
20 X 10-10, 4-ply rating, Toro Turf Tread tires
- Weight
Approx. 2,095 lbs. (950 kg)
