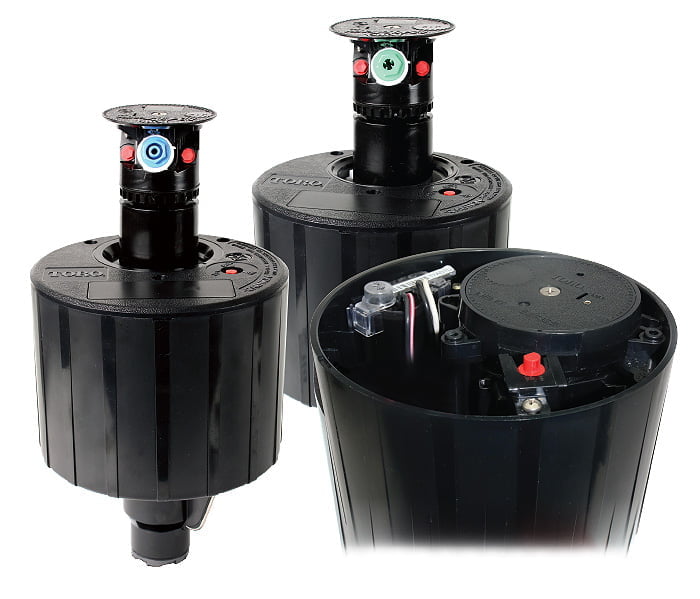

INFINITY® 34/54 Series Golf Rotors
Overview
The New INFINITY® 34/54 is Toro’s Premium full-circle golf sprinkler series with SMART ACCESS®. The dual trajectory main nozzle provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the consistency of the constant velocity full circle drive ensures even water application across the coverage area every time you water.
Features
The Industries Largest and Most Flexible Nozzle Selection
With the industries largest selection of nozzles Toro sprinklers allow you to put the precise amount of water exactly where you need it.Indestructible Stainless Steel Valve Seat
Never gets damaged; never requires replacement; lower cost of ownershipFuture-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!GDC 2-wire module
Accessible from the top: allows for GDC module retrieval, system troubleshooting and system repairs without digging!Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!
Specifications
- Radius
INF34: 15.8 to 27.7 m
INF54: 15.8 to 30.2 m - Flow
INF34: 49.2 to 177.5 L/min
INF54: 49.9 to 234 L/min
- Precipitation Rate
INF34: Min = 8.4 mm/h; Max = 14 mm/h
INF54: Min = 8.4 mm/h; Max = 15.5 mm/h - Trajectory
25° & 15°
- Arc
Full Circle - Recommended Operating Pressure
4.48 to 6.9 bar
- Minimum Operating Pressure
2.8 bar - Inrush
60 Hz, 0.12 Amps
- Holding
60 Hz, 0.10 Amps - Inlet
INF34: 1″ ACME
INF54: 1½” ACME
- Pop-Up Height
82.6 mm - Body Height
INF34: 25.4 cm
INF54: 28.9 cm
- Body Diameter
SMART ACCESS® cover and compartment
INF34: 19.4 cm
INF54: 19.4 cm - Weight
INF34: 1.91 kg
INF54: 2.28 kg
