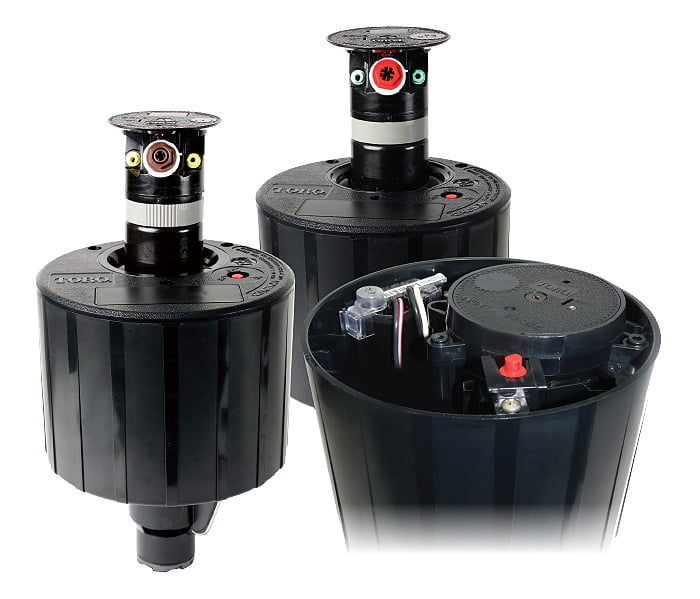

INFINITY® 35/55 Series Golf Rotors
Overview
The New INFINITY® 35/55 Series with SMART ACCESS® features a dual trajectory main nozzle that provides exceptional nozzle performance at the 25° standard angle position and great performance in windy applications at the 15° low angle position. And the part/full circle drive and ratcheting riser allows you to adjust the area of coverage to match your seasonal watering needs or meet water rationing mandates in seconds with no additional parts required.
Features
Arc adjustment – 40° to 330° and true full-circle in one
One sprinkler for every location on the course. These unique sprinklers can be a full circle today and a part circle tomorrow, allowing you to simply and economically adjust the area of coverage to match your seasonal needs or meet water rationing mandates in seconds with no disassembly or additional parts required.Future-Proof Your Investment
Compartment provides room to grow. Whatever the future holds, this sprinkler will be ready. Getting smarter without digging!GDC 2-wire module
Accessible from the top: allows for GDC module retrieval, system troubleshooting and system repairs without digging!Nozzle Base Clutching
Hot spot watering has never been easier, simply turn in either direction, hold and shoot to put down as much water as needed, exactly where you want it. Standard on all part circle models.Pilot Valve Accessible
Toro’s patented CHECK FLOW™ feature facilitates troubleshooting, pressure adjustments, solenoid and pilot valve servicing without turning the water off or digging!Wire splices protected and accessible from the top
The protective enclosure isolates wire splices from the soil and potential shorts to ground. Provides access for system troubleshooting and repairs without digging!
Specifications
- Radius
INF35: 13.1 to 16.2 m
INF55: 16.8 to 28 m - Flow
INF35: 31 to 178 L/min
INF55: 53.4 to 232 L/min
- Precipitation Rate
INF35: Minimum – 10.4 mm/h; Maximum – 11.4 mm/h
INF55: Minimum – 11.7 mm/h; Maximum – 14.7 mm/h - Trajectory
25° & 15°
- Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One – 40° to 330° and 360° - Recommended Operating Pressure
4.48 to 6.9 bar
- Minimum Operating Pressure
2.8 bar - Inrush
60 Hz, 0.30 Amps
- Holding
60 Hz, 0.20 Amps - Inlet
INF35: 1″ ACME
INF55: 1½” ACME
- Pop-Up Height
82.6 mm - Body Height
INF35: 25.4 cm
INF55: 28.9 cm
- Body Diameter
SMART ACCESS® cover and compartment
INF35: 19.4 cm
INF55: 19.4 cm - Weight
INF35: 1.93 kg
INF55: 2.3 kg
