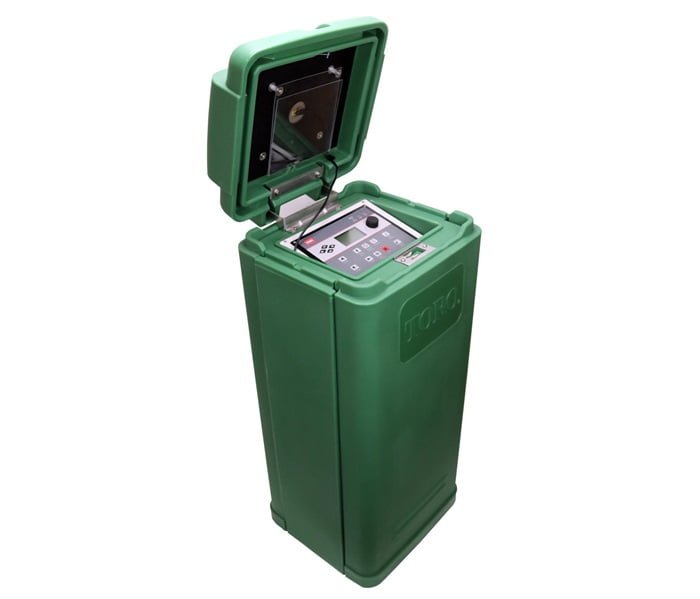

Lynx® Smart Hub
Overview
Lynx® Smart Hub combines the benefits of satellites and decoders and delivers intelligent simplicity. This new field controller adds the security, programmability and sensing capabilities of a satellite system to the benefits and simplicity of the Lynx® GDC 2-Wire Control System. Moreover, the Smart Hub provides flexibility to provide unique solutions to golf courses whether in colder, rainy climates or warmer, drier climates.
Specifications
- Power
Input Voltage: 100-240 V AC, 50/60 Hz; Input Current: 1.6 A/1.0 A (115/230) - Dimensions
Enclosure: Plastic Pedestal: 43.2 cm W x 101.6 cm H x 40.6 cm D; Powder Coated Steel Wall Mount: 35.6 cm W x 33 cm H x 15.2 cm D
- Number of Stations
1,000 stations per Lynx Smart Hub. 5,000 stations for the entire Lynx Smart Hub system. 100 simultaneous stations per output board. - Number of Programs
64 stand-alone programs
- Surge Protection
20 kV, 10 kA - Output Power
Output Voltage: 40 V AC; Output Current: 75 VA max, Class 2, SELV
- Maximum Number of Satellites
20 Smart Hubs Per System - Maximum Stations Per Satellite
Maximum 1,000 stations per Lynx Smart Hub. Maximum 5,000 stations for the entire Lynx Smart Hub system.
- Operating Temperature
0° to 60°C
