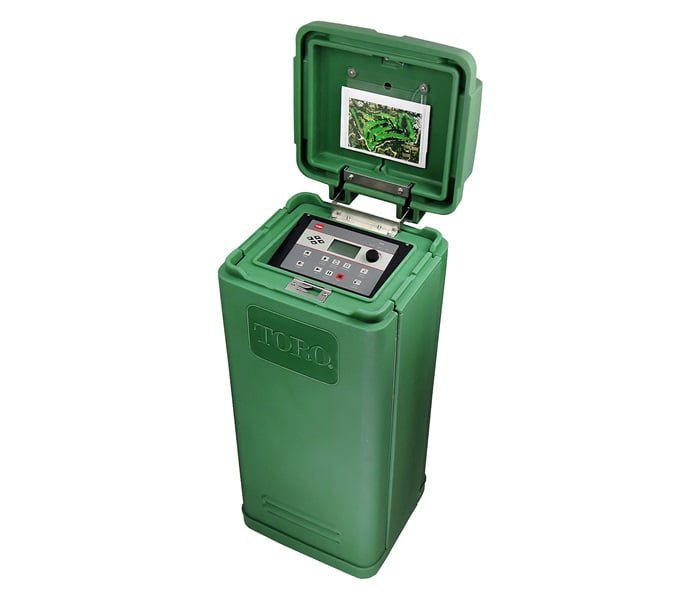

Lynx Smart Satellite
Overview
The all-new Lynx Smart Satellite sports a familiar look but is designed to improve performance and reliability. Picking up where the accomplished Network VP® left of, the Lynx Smart Satellite adds enhanced communications with the Lynx Central Control System and integration with field sensors to further complement your decision making. Lynx Smart Satellite is also fully compatible with Network VP and Network 8000® systems as an addition or replacement.
Specifications
- Power
Input Power: 108 V AC to 132 V AC, 60 Hz, 0.20 amp (no load) 115 V AC, 1.2 amp (max. load) 115 V AC, 216 V AC to 264 V AC, 50 Hz, 0.10 amps (no load) 230 V AC, 0.60 amp (max. load) 230 V AC - Number of Stations
16 to 64 stations in 16 station increments; individual station control and the ability to run up to 32 stations simultaneously
- Output Power
24 V AC: 3.0 amp (max. total load)
