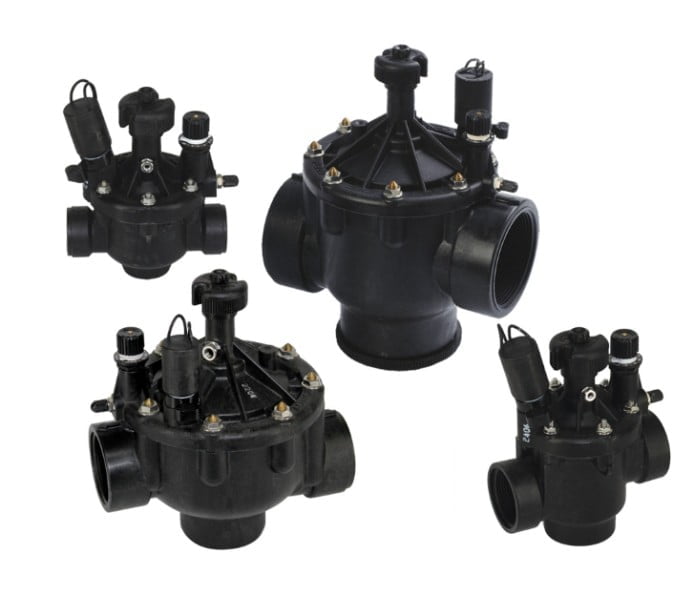

P-220 Series
Overview
These heavy-duty glass-filled nylon valves are specially designed for commercial applications with pressures up to 15.2 bar, but also have the ability to pressure regulate the flow through the valve anywhere from 0.3 to 6.9 bar
Specifications
- Flow
19 to 1,135 L/min - Operating Pressure
0.7 to 15.2 bar max
- Solenoid
DC Latching - Inrush
0.40 amps; Spike Guard 0.12 amps
- Dimensions
1″ (25.4 mm): 17.1 cm H x 9.2 cm W; 1.5″ (38.1 mm): 18.4 cm H x 9.2 cm W; 2″ (51.4 mm): 24.1 cm H x 15.6 cm W; 3″ (76.2 mm): 27.3 cm H x 15.6 cm W - Size
1″ (25.4 mm), 1.5″ (38.1 mm), 2″ (25.4 mm), 3″ (76.2 mm)
- Holding
0.20 amps; Spike Guard 0.10 amps
- Body Style
Angle, Inline/Globe
- Burst Pressure Safety Rating
750 psi (51.7 BAR)
- Minimum Pressure Differential
10 psi (.7 BAR)
- Construction
Glass-filled Nylon
- Activation
Electric
