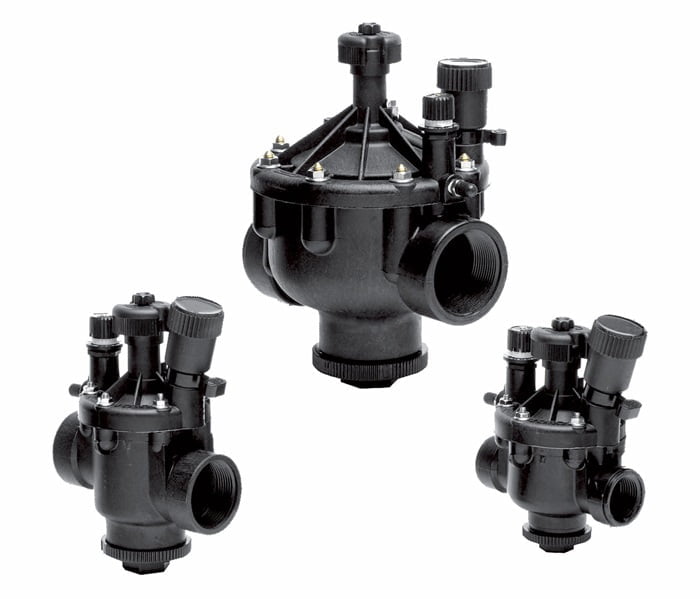

P-220G Series
Overview
These heavy-duty glass-filled nylon valves are specially designed for commercial applications with pressures up to 15.2 bar, but also have the ability to pressure regulate the flow through the valve anywhere from 0.3 to 6.9 bar
Features
Nearly three times the lightning protection of competitive products
With a lightning rating exceeding 20,000 volts, the new 220 Series brass valves offer nearly three times the lightning protection of competitive productsPrecise, pressure control option with compact EZReg™ dial design.
Precise, pressure control option with compact EZReg™ (can be factory installed) dial design. Technology does not effect friction loss unlike competitive valves.
Specifications
- Flow
19 to 1,135 L/min - Operating Pressure
0.7 to 15.2 bar max
- Solenoid
DC Latching - Inrush
0.40 amps; Spike Guard 0.12 amps
- Dimensions
1″ (25.4 mm): 17.1 cm H x 9.2 cm W; 1.5″ (38.1 mm): 18.4 cm H x 9.2 cm W; 2″ (51.4 mm): 24.1 cm H x 15.6 cm W; 3″ (76.2 mm): 27.3 cm H x 15.6 cm W - Size
1″ (25.4 mm), 1.5″ (38.1 mm), 2″ (25.4 mm), 3″ (76.2 mm)
