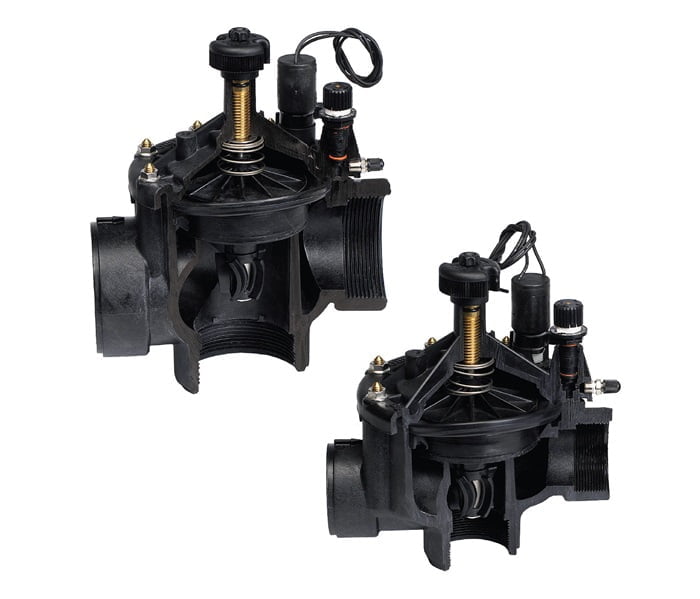

P-220S Scrubber Series Valves
Overview
True dirty water irrigation valves, the Toro® P-220S Scrubber Series valves are built to handle chlorine, chloramine, and other chemicals found in reclaimed and non-potable water systems. Constructed of heavy duty, glass-filled nylon and EPDM rubber components the P-220S valves feature Toro’s patented Active Cleansing Technology (ACT™), which helps prevent the build-up of sand, algae, and other organic materials that may inhibit water from metering properly through the valve.
Specifications
- Flow
1″: 19 to 151 L/min; 1½”: 114 to 380 L/min; 2″: 302 to 680 L/min; 3″: 568 to 1,135 L/min - Operating Pressure
1″ & 1½” Models: 10 to 220 psi; 2″ & 3″ Models: 20 to 220 psi
- Solenoid
Spike Guard™: 24 VAC (50/60 Hz) Standard - Inrush
60 Hz, 0.4 amps
- Dimensions
1″: 172 mm H x 92 mm W; 1½”: 184 mm H x 92 mm W; 2″: 241 mm H x 156 mm W; 3″: 273 mm H x 156 mm W
- Holding
60 Hz, 0.2 amps
- Body Style
Globe/Angle with female threads
- Minimum Pressure Differential
0.7 bar (10 psi)
