P150 Series
Overview

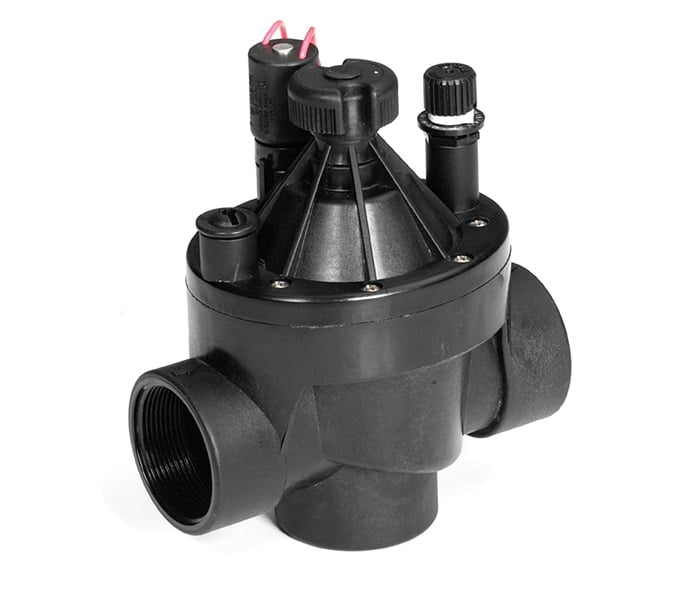

Toro’s light commercial P-150 plastic valves are the value work horses of plastic valves. At a 10 bar (150 psi) rating, these plastic valves are able to withstand the high pressures of commercial applications. With the optional EZReg™ feature, pressure regulation is as simple as dialing in the setting
Specifications
- Flow
1″ (25.4 mm): 19 to 151 L/min; 1½” (38.1 mm): 76 to 303 L/min; 2″ (50.8 mm): 151 to 568 L/min - Holding
0.30 amps, 7.2 VA
- Inlet/Outlet
Inlet: 1.4 to 10 bar; Outlet: EZR-30 0.3 to 2 bar ±; Outlet: EZR-100 0.3 to 7 bar ± - Inrush
0.37 amps, 8.8 VA
- Operating Pressure
1.4 to 10.3 bar - Solenoid
Solenoid 50-60 Hz 24 V ac (standard)
