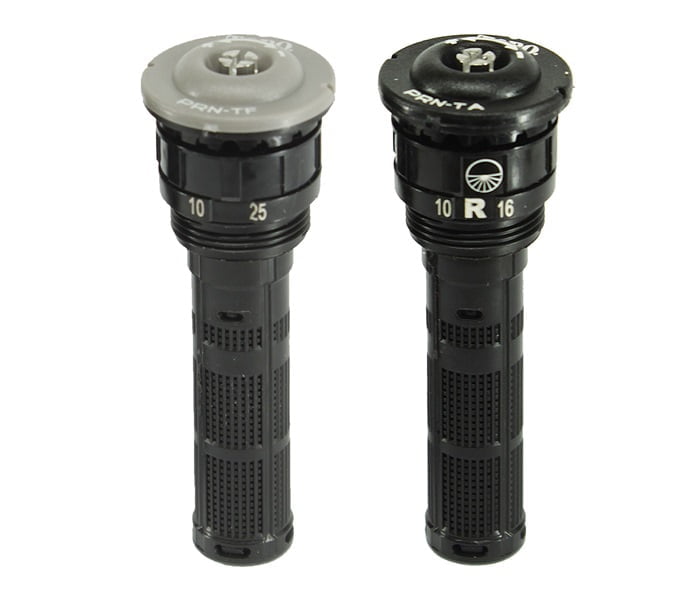

Precision™ Series Rotating Nozzles
Overview
Making use of the same patented gear drive technology found in Toro’s world-leading Golf rotors, Precision™ Series Rotating Nozzles are powered by a planetary gear drive system that delivers a pattern of multiple wind resistant, multi-trajectory streams. The full circle and adjustable arc models deliver a radius range of 4.3 to 7.9 metres with exceptional distribution uniformity and close-in watering characteristics at a precipitation rate of 15.2 mm per hour.
Features
Gear-Driven
Utilises a proven planetary gear drive, variable stator and turbine to rotate the nozzle.Fewer Models
Only two male-threaded nozzles and two female-threaded nozzles are required to cover radius range from 4.3 to 8 m and arc range from 45 to 360°.Matched Precipitation Rate of 14 mm/h.
These nozzles deliver water more slowly and evenly than standard spray nozzles. The precipitation rate of 14 mm/h helps prevent excess run times often set to stay within watering windows.Consistent Speed of Rotation
The gear drive mechanism delivers a consistent speed of rotation regardless of system pressure and prevents product stalling at low pressure.
Specifications
- Radius
4.3 to 7.9 m - Flow
1.4 to 14.3 L/min
- Precipitation Rate
15.2 mm/h - Recommended Operating Pressure
1,4 to 5,2 bar
- Thread
Male; Female - Pattern
45 to 270, Full-circle
