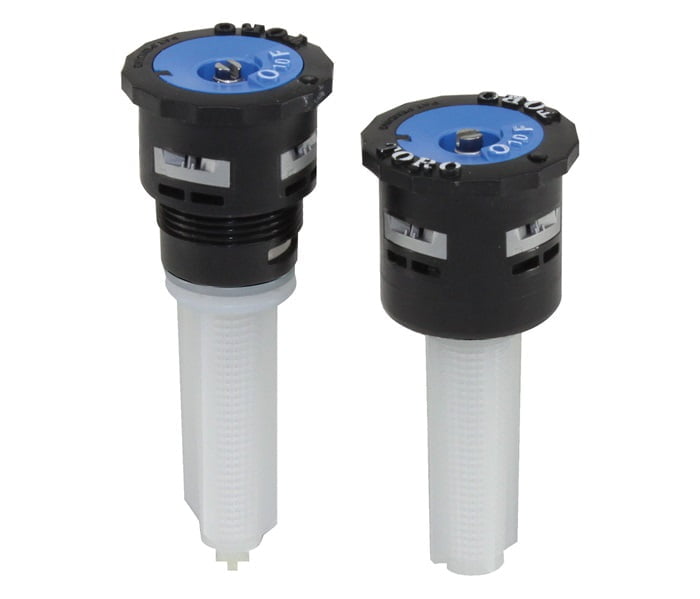

Precision™ Series Spray Nozzles
Overview
Toro’s new Precision® Series Spray Nozzles are the most complete and efficient spray nozzle line available to help irrigation professionals manage water use, eliminate runoff and reduce customer water bills.
To learn more about the Precision Series Spray Nozzle, click here
Features
Patented H²0 Chip Technology
Using patented H²0 chip technology – and no moving parts – each Precision Series Spray nozzles creates one or more high frequency oscillating streams to achieve the desired arc and radius with 1/3 less water usage.Maximize Irrigation Efficiency
Precision Spray nozzles deliver an industry first 25 mm/h precipitation rate, which better matches soil infiltration rate. This lower precipitation rate, along with high distribution uniformity make this nozzles family the most efficient nozzle from 1.5 to 4.6 m.
Design and Retrofit Effectiveness.
The lower flow rate of Precision Series spray nozzles maximises design efficiency and saves on overall material costs by using fewer valves and less controller stations. In addition, existing systems with low pressure can be fixed with a simple retrofit of the existing high- flow nozzle.Third-Party Performance Validation
Precision Series Spray nozzles have been tested and validated in the field and at the Center for Irrigation Technology (CIT).Optional Pressure Compensating Device (PCD)
Maintains optimal performance even when inlet pressure rises to 2.8 bar and higher.
Specifications
- Radius
1.5 to 4.6 m - Flow
0.2 to 9.6 L/min
- Precipitation Rate
≤ 25 mm/h - Recommended Operating Pressure
Non PCD: 2.0 bar; With PCD: 2.8 bar and above
- Thread
Male; Female - Pattern
60, 90, 120, 150, 180, 210, 240, 270, 360 & Specialty
