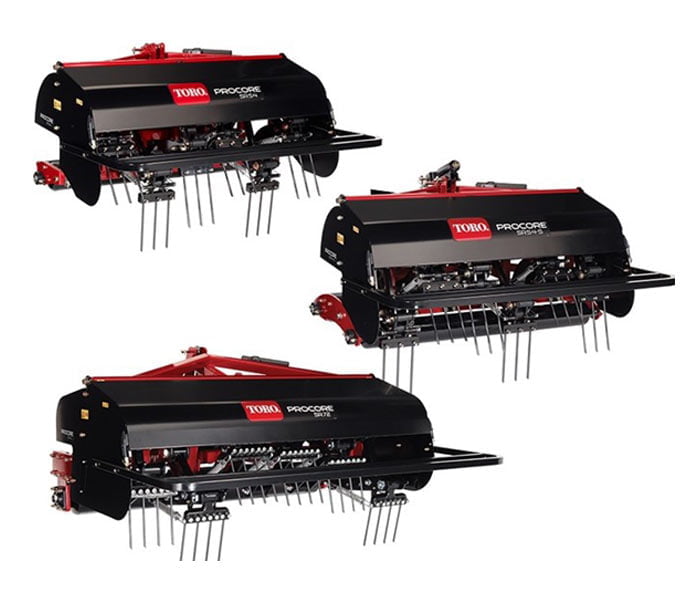

ProCore SR Series Turf Aerator
Overview
The compact and heavy duty SR Series are designed for use on a variety of turf areas including fairways, greens, tees, and athletic fields. The SR Series features a working width of up to 73″ (1.85 m) and depth capabilities of up to 16″ (41 cm).
Models:
- ProCore SR54
- ProCore SR54-S
- ProCore SR70
- ProCore SR70-S
- ProCore SR72
Features
Adjustable Soil Fracturing Capabilities
There are multiple positions available to adjust the soil fracturing movement of the tines. This allows you to adjust and control this motion to your desired application.Coring and Solid Tines
There are many coring and solid tines available to cover a wide variety of cultivation practices.Depth Control from the Operator’s Seat
The distinctive frame construction incorporates perfectly aligned arcs following the movement of the crank arms and the movement of the main frame. This design allows the operator to change the tine depth without changing the angle of entry by using the hydraulic top link from the tractor while the machine is in operation. Because of this one-of-a-kind feature, you can apply the ideal tine position for every soil type and condition, without leaving your seat.Easy Hook-Up and Operation
All of the deep-tine models utilize a standard 3-point hitch hook-up and are powered from the PTO.Heavy-Duty Design
These robust machines are capable of withstanding extreme aeration conditions. The heavy-duty design includes an oversized gearbox, heavy-duty bearings, crank arms and chains, allowing you to operate in the toughest conditions.Precision Design
The crankshaft, tine arms and frame are perfectly aligned allowing for superior performance and long life. With its fast, efficient performance and innovative design, the deep-tine aerators are able to run smoothly at all depths, relieving pressure-packed soil with superior hole quality.Superior Punching Power
The leverage of the aerator allows the weight to be placed directly over the point of impact, enabling lightweight units to do heavyweight jobs while reducing shock and wear and tear on the machines.
Specifications
- Aerating Depth
Up to 5 inches (12.7 cm) - Aerating Width
98″ ( 2.5m)
- Lift System
3-point Category 1 or 2 - Tine Heads
12
- Tractor PTO
540 RPM - Tractor Size
Recommended Tractor HP – 50hp (37kW) | PTO: 540 rpm
- Weight
2,300 lbs. (1,043 kg)
