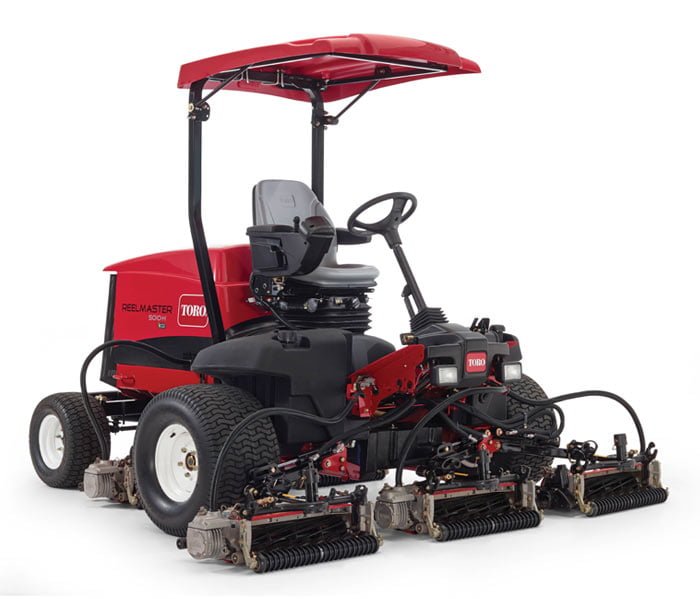

Reelmaster® 5010-H Mower
Overview
The Reelmaster® 5010-H is the industry’s first and only reel mower with a true hybrid drive system. The Reelmaster 5010-H utilizes a Kubota 24.8 hp diesel engine in concert with an in-line motor generator and a self-recharging 48-volt battery pack to provide seamless power to the vehicle and cutting units. The combination of these two power sources comprises Toro’s patented hybrid power delivery system called PowerMatch™. PowerMatch enables the Reelmaster 5010-H to match the power generated to the power required for all cutting conditions. The result is the availability of over 40 horsepower, but only when cutting conditions require it, which saves on average 20% fuel usage, improving operating costs, and the vehicle’s carbon footprint.
Features
Power and Performance
With over 40 available horsepower, the PowerMatch system can handle verticutting, scalping, and steep hills. Power is used so efficiently through the PowerMatch™ system that the Reelmaster 5010-H can perform at least on-par, and in many cases better than much higher horsepower machines. Three years of vigorous field and real-world testing have proven the Reelmaster 5010-H has the power to perform in the most rigorous conditions, and the efficiency to keep it up year after year.48 Volt Battery Pack
The battery pack is made up of four, 12-volt, Absorbed Glass Mat (AGM) batteries that are maintenance-free and sealed. The batteries are very similar to the ones used in the automobile industry for start-stop hybrids. These batteries are designed for a very long life when they are shallowly discharged and repeatedly recharged with a system like our PowerMatch™. Depending on usage, the life expectancy will vary, but in an average duty cycle, the battery pack can be expected to last years of operation.Worry Free
Removing the hydraulic cutting mowers and replacing them with electric motors on the Reelmaster 5010-H resulted in over 100 fewer leak points than a conventional 254 cm fairway mower. The remaining vehicle and cutting unit lift system hydraulic lines are predominately hard lines or hoses with limited movement, and are not subject to the same fatigue or service intervals as the cutting unit hoses and motors.Versatility
The Reelmaster 5010-H has a Plug and Play feature that allows it to accept 5-inch or 7-inch diameter DPA cutting units. Simply plug in the cutting unit and motors of your choice and the machine automatically make all the necessary adjustments. The 5010-H can be equipped with 5″ or 7″ reels, in either 8 or 11 blade configurations.Efficient Reel Performance
The electric reel motors allow for precise setting of the clip and consistent power across all five cutting units for a superior cut. The cutting units also feature low-drag seals and low-friction bearing which improve wear and reduce the required horsepower to run the decks.Precision Control
The Reelmaster 5010-H’s InfoCenter display will actually make maintenance and diagnostics quicker and easier for technicians. The on-board LCD display provides system information alerts, service reminders, diagnostics, fault codes and vehicle and cutting unit adjustments that are easy to see and understand. Precisely control reel speed and clip rate, monitor reel performance and view reel diagnostics with the on-board InfoCenter.EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Specifications
- Engine
Tier 4 compliant Kubota® 3-cylinder, liquid-cooled, diesel engine. 24.8 hp (18.5 kW). Four 12V Absorbed Glass Mat (AGM), sealed, maintenance-free lead acid batteries. - Fuel Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% biodiesel and 80% petrol blend)
- Mowing Speed
0-8 mph (0-12.8 km/h) forward; 0-4 mph (0-6.4 km/h) reverse - Transport Speed
0-10 mph (0-16 km/h) forward transport
- Controls
Intuitive controls provide improved operator efficiency and safety. - Cooling System
Rear mounted radiator with industrial tube and fin construction, 6 fins per inch, 5.5 quart (5.2 liter) system capacity.
- Height
63″ (160 cm) seat top, 85.5″ (217.2 cm) top of ROPS. - Height of Cut
0.25″-1.5″ (6.4-38.1mm)
- Hydraulic Fluid
11 gallon (56.8 liter) system capacity - Reel Drive
Reel drive circuit is split independently for front and rear cutting units. Reel speeds are electronically adjustable in nine incremental settings. On-board backlapping is standard.
- ROPS
Standard with seat belt - Seat
Deluxe high back suspension seat with fore, aft, height and weight adjustment
- Steering Controls
Rear wheel, power steering with an independent hydraulic pump and circuit. - Tank Capacity
14 gallon (53 liter) capacity. Biodiesel-ready for use up to B-20 (20% bodiesel and 80% petrol blend)
- Tires
Front traction tires: 26.5 x 14-12 turf tires; Rear steer tires: 20 x 12-10 - Traction Drive
Front drive wheels powered by a hydrostatic pump with individual wheel motors. All-wheel drive optional with Cross Trax® All-Wheel Drive system.
- Weight
5″ cutting units: 2WD – 2,776 lbs (1,259 kg), 4WD – 2,827 lbs. (1,282 kg) 7″ cutting units: 2WD – 2,907 lbs. (1,319 kg); 4WD – 2,965 lbs. (1,345 kg) - Wheelbase
60″ (152.4 cm)
