Sand Pro® 2040Z
Overview

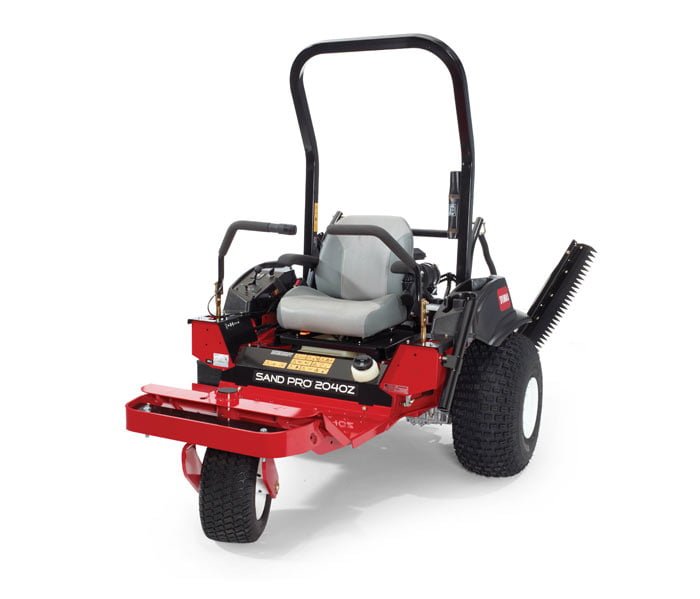

The Sand Pro 2040Z mechanical rake is unlike anything else in the marketplace; a zero-turn mechanical groomer delivering unmatched maneuverability and productivity. This unique machine is a daily bunker rake that will reduce labor costs for both mechanical and hand raking of bunkers and infields. A brand new “flex” raking system with the patented “lift in turn” feature enables an operator to turn tightly in bunkers without leaving unraked teardrops or tire marks.
Features
Unparalleled Maneuverability & Productivity
Zero-turn steering allows the Sand Pro 2040Z to groom many bunkers other mechanical groomers simply cannot access. This means you can groom more bunkers with less labor, allowing your staff to complete other tasks sooner.Innovative Bunker Raking System
This unique 84-inch (213 cm) wide flex tooth rake features three reversible rubber trowels that reduce damage to bunker liners and edges. Each of the rake’s three sections moves independently to follow bunker contours. The flex tooth rake has adjustment stops for pivot, rake pitch and “lift in turn” height.Lift In Turn
This patented feature makes the inside flex tooth rake section lift in a tight turn preventing teardrop formation, leaving a uniform bunker surface.Thumb-Activated Groomer
The rear attachment is easily operated through a thumb switch on the right hand control stick. The hydraulic lift system is safe and quick, allowing the operator to enter and exit bunkers quickly.Fast Transport
The Sand Pro 2040Z transports at 12 mph (19.3 km/h), 20% faster than other Sand Pro models.Reliable Engine
The Sand Pro 2040Z’s twin cylinder, air-cooled Kawasaki® 12.2 hp (9.1 kW) Petrol engine is powerful enough to easily climb in and out of bunkers and quickly transport over hills without bogging down. The single stage cyclonic air filter keeps the engine running cleanly in the dustiest conditions.Easy Access for Maintenance
The unitized transmission design consists of two independent unitized pump and wheel motor assemblies that minimize hydraulic lines and connections for reliable, low-maintenance performance.
Specifications
- Engine
Kawasaki® 12.2 hp (9.1 kW) 2 cylinder, 4-cycle, Petrol - Fuel Capacity
4.5 gal (17 L) of unleaded Petrol
- Ground Speed
Forward 0-12 mph (0-19.3 km/h), Reverse 0-4 mph (0-6.4 km/h) - Height
73 in (185 cm)
- Length
89 in (226 cm) with Flex Tooth Rake, 84.8 in (215 cm) with Nail Drag - Traction Drive
Belt driven independent infinitely variable unitized transmission, with automatic tensioning system.
- Weight
920 lbs (417 kg) with Flex Tooth Rake, 970 lbs (439 kg) with Nail Drag - Width
84 in (213 cm) with Flex Tooth Rake, 71.5 in (182 cm) with Nail Drag
