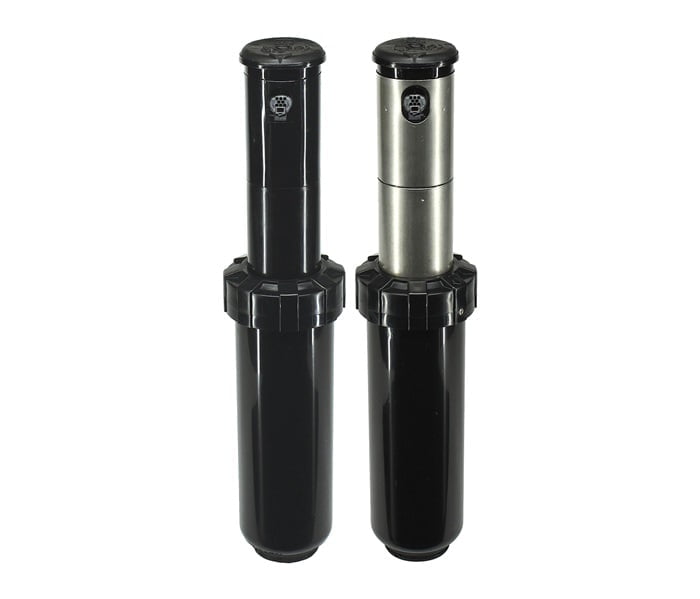

T7 Series Rotors
Overview
The Toro® T7 Rotor is built rugged to withstand the harsh conditions and vandalism present in municipal/government, sports fields and commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. Its extensive customer identified features including a full 14.6 cm pop-up height and large radius make it ideal for sports fields, parks and other large turf applications. Further enhancing its versatility, the T7 is now also Low-Flow Versions, for smaller radius and lower flow applications, such as baseball infields.
Features
Top Arc Indication
Arc setting indicator on top of the rotor allows for easy wet or dry adjustments from 45°-360°.High Efficiency Nozzles
Single port design ensures water is evenly distributed across the pattern without putting too much water near the head, which prevents seed from washing away.Vandal and Abuse Resistance
Smart Arc™ memory safely returns sprinkler to previously set arc if vandalised.Design Solutions and Safety
Standard check valve to prevent low head drainage. Small exposed diameter reduces possibility of injury on play areas. Stainless steel riser and nozzle base stands up to the toughest of abuse.Versatility
Available in low-flow models (identified by “circle L” on rubber cover), for short radius (11.6 to 16 m / 38′ to 53′) applications, such as cricket infields.
Specifications
- Radius
Low-flow models: 11.6 to 16.2 m; High-flow models: 14 to 25 m - Flow
Low-flow models: 6.4 to 49.2 L/min; High-flow models: 25,4 to 116 L/min
- Trajectory
25° - Arc
Full Circle; Part-circle Adjustable; Part/Full circle in One
- Recommended Operating Pressure
2.8 to 6.9 bar - Inlet
1″
- Pop-Up Height
12.7 cm - Body Height
22.4 cm
- Cap Diameter
56 mm
