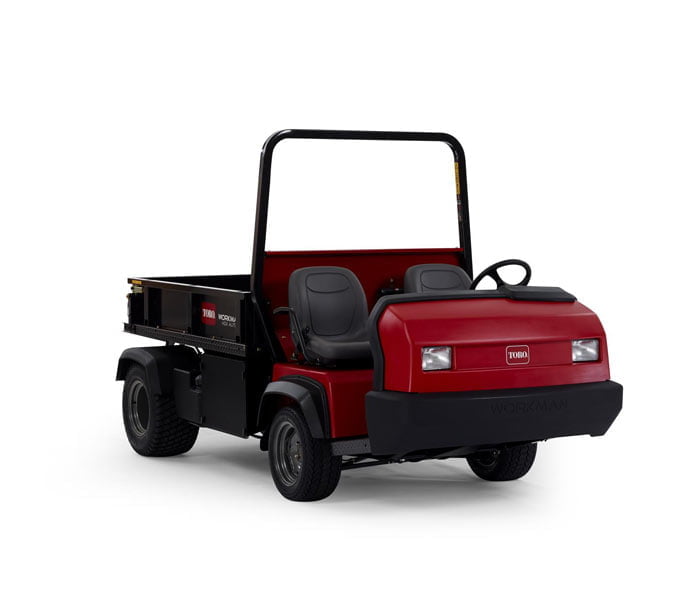

Workman® HDX
Overview
The Workman HD Series is designed with your toughest work challenge in mind, from the front bumper to the rear bumper and everything in between. Design Components like an I beam shaped Dedion rear axle, a truss – like front space frame, integrated wheel bearings and 4- wheel hydraulic disc brakes provide the highest total towing capacity in the industry and make the workman ready for the toughest challenge.
Features
Payload Capacity
The Workman HDX line of vehicles provides total payload capacity up to 3352 lbs.DeDion Rear Axle
The DeDion rear axle design is an automotive technology which isolates the engine, transmission and main frame from all load forces, eliminating stress to these main components. The I-beam design provides superior ability to handle vertical loading, exactly the reason I-beams are used extensively in the construction industry.Disc Brakes
4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.Four Wheel Drive Traction
Automatic, on demand, bi-directional four wheel drive traction system provides additional traction when needed without operator action.Front Impact Bumper
A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 3 mph (4.8 km/h) under full load with no permanent deformation.High Performance Engine
Liquid cooled diesel engine provides excellent low end torque and is EPA Tier 4 emmission compliant and B20 biodiesel ready.Ride Quality
Independent front suspension consisting of two double A-frames with opposing dual coil springs and dual shock absorbers provides 5.75 in. (14.6 cm) of front suspension travel. Rear suspension design consists of a DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3 in. (7.6 cm) of rear travel. Benefits include operator comfort, safety, reduced operator fatigue, productivity and efficiency gains.Tough Frames
The Workman® front space frame design is multi-dimensional or truss like, providing superior strength and torsional rigidity in rough terrain. The rear frame uses a C-channel design to provide superior strength in hauling heavy loads.Operator Comfort
In addition to excellent ride quality, the HD Series offers an easy to read instrumentation package, enhanced leg room, a radio / beverage holder, easy to reach controls and a deep storage box.Versatility
The Workman® can perform a variety of work tasks beyond hauling and towing with attachments such as a 200 Gallon (757 Litre) Sprayer, Vicon® Spreader, 1/3 Vertical Platform Lift, Patriot® Aerial Lift and Topdressers. Numerous accessories enhance versatility including Canopy, Folding Windshield, Various Light Kits, Deluxe Hard Cab, Various Flatbeds, 4-Post ROPS, Automatic Tailgate Release, Rear PTO and others.
Specifications
- Brake System
4 wheel hydraulic disc brakes. - Engine
Kubota® 972 EFI 32.5 hp (24.2 kW) Petrol, Kubota 902D 23.3 hp (17.4 kW) diesel, Kohler CH23 23 hp (17.2 kW) Petrol.
- Four Wheel Drive
Automatic, on-demand, bi-directional system. (4WD models only*). - Front Suspension
Independent double A-Frames with opposing dual coil springs and dual shock absorbers provides 5.75 in. (14.6 cm) of front suspension travel.
- Rear Suspension
DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3 in. (7.6 cm) of rear travel. - Turning Radius
50 degrees
